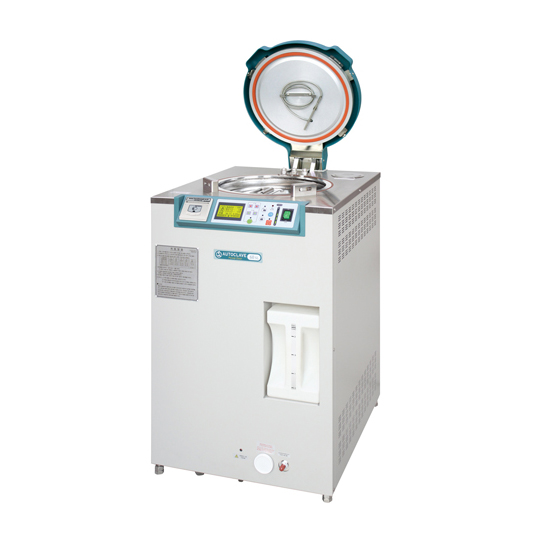

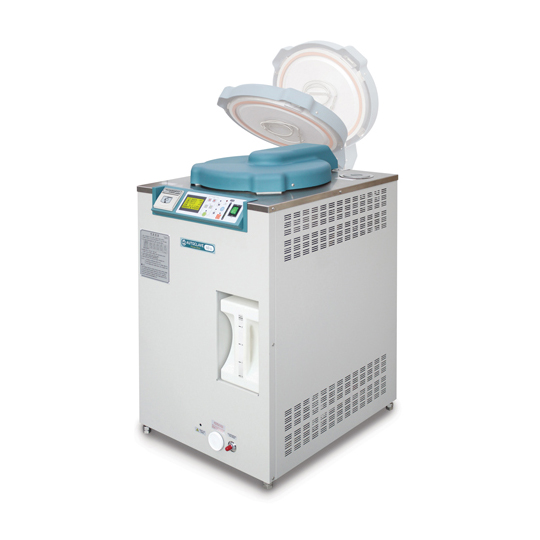

• 01 Far more convenient and safe sterilization by motor driven automatic door

  This sterilizer is adopted a unique vertical type cylindrical chamber equipped with a motor driven automatic door, therefore the chamber loading, unloading and sterilizer operation are far more convenient and safe compare to the manual door. The vertical type chamber allows to use a wider chamber than other small sterilizers in the confined space, and is the most effective for sterilizing a liquid load, more useful for liquid contained in a big glass bottle at the clinical laboratories and research institutes. The operator could check the cycle progressing conveniently on the LCD monitor because the state of sterilizer operation is displayed digitally in real time on it.

• 02 Various sterilization cycle and self-diagnosis program

  5 kinds of basic cycle program for sterilizing in accordance with items to be sterilized and packaging type, therefore the operator could select a proper cycle program and perform sterilization conveniently. Especially the liquid contained in the glass bottles could be sterilized safely and efficiently, and users can change the parameters of basic cycle programs at user's pleasure for handling a particular sterilizing condition. If an error has occurred during operating the sterilizer, the error code is displayed on the LCD monitor accompanying an audible alarm and the cycle in progress is aborted at the same time automatically for the safety of workplace by the self-diagnosis program.

• 03 Cycle Execution Data Storing

  The cycle performance records executed at least for 11 years are stored in the control unit in order. The user can automatically search the results of sterilization cycle performed previously by input the date performed cycle or the cycle count number and prints out the result record by the built-in panel printer.


• 04 Unique exterior small steam generator

  The built-in exterior small steam generator which is newly-developed by our advanced technology can vaporize feed water supplied from the reservoir instantly and the generated steam is injected into the chamber as a sterilizing media, therefore the chamber is less contaminated than the internal steam generating type and the usable loading space is widened because there is no heater assembly in the chamber.

• 05 Use of clean steam every cycle

  The used water after completion of a sterilizing cycle is collected in the collection container designed separately with the reservoir, therefore the saturated steam generated by a clean water always can be supplied to perform every sterilizing cycle.

• 06 Safety Equipments

  This sterilizer has the safety system for the safety of workplace designed that there exists more pressure compare to the set level in the chamber by the pressure switch. The safety valve operates and releases chamber pressure automatically when an overpressure more than the limited value has been formed in the chamber for a certain reason.

• 07 Panel Printer

  The built-in panel printer prints out the cycle performance record for securing the traceability afterwards.
