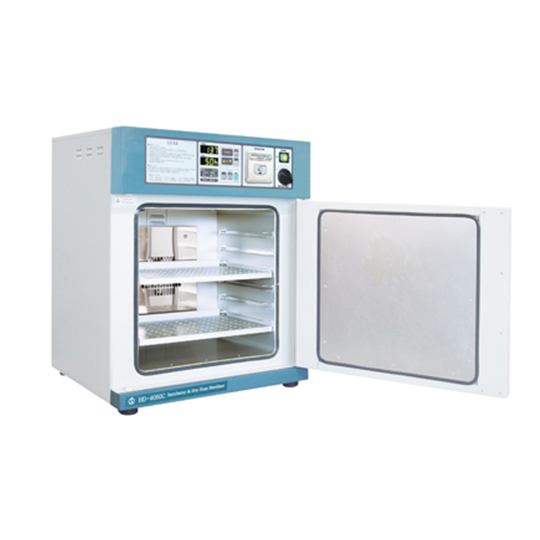

HD-4050C

  • close
  • open

  • close
  • open

Highlights
Scroll down

  • 01

    This unit allows to remove the economical burden to buy the incubator separately because it has the two functions of dry-heat sterilizer and incubator. Sterilizing and incubating mode has 5 kinds of cycle program provided in each mode to operate conveniently, and it realized the effective temperature control and power-saving effect at once by adopting the precise PID control method.

  • 02

    The chamber temperature is almost even because the chamber is heated from the four walls simultaneously and internal air is circulated by a fan forcibly. A sudden temperature change hardly occurs due to the external fresh air flown into the chamber is already preheated.

  • 03

    The error code is displayed on the monitor, the audible alarm is generated and the executing cycle is aborted automatically for safety when an error has been occurred, and the actual temperature and remaining time of each process are displayed on the monitor during operating.

Specifications

Model HD-4050C
Overall Dimension W558 x D522 x H661 ㎜
Cabinet Material: Powder coating, Carbon steel
Chamber W400 x D330 x H400 ㎜
Material: Aluminium KSD 6071
Vol: 52.8 ℓ
Insulator Mineral wool, thickness: 50 ㎜
Shelf W394 x D278 x H24㎜, Q'ty: 2ea
Weight HD-4050C: 37kg
Power Source AC 230V, 50/60Hz
Power Consumption 1,500 W
Mode Incubator / Sterilizer
Controls Microprocessor, PID Controller
Heat Transfer Forced Convection type
Temperature Range Sterilization Mode : 140℃, 160℃, 180℃ (35℃~220℃ of user's cycle available)
Incubation Mode : 37℃, 42℃, 52℃, 60℃, 70℃ (35℃~80℃ of user's cycle available)
Temperature Stability (@160℃, without load) ±1.5℃
Temperature Uniformity (@160℃, without load) ±3.0℃
Temperature Stability (@37℃, without load) ±1.0℃
Temperature Uniformity (@37℃, without load) ±2.0℃
Display 7-Segment, 4-Digit, LED
Glass Door (Optional) Triple Tempered Glass, thickness: 5 ㎜
Communication Port (Optional) RS-232C Interface Communication Port
Printer (Optional) Direct Thermal Printing Type, Paper Roll; W58 x Ø40 ㎜
Environment Conditions ㆍ Altitudes up to 2,000 meters
ㆍ Temperature range of +5℃ to +30℃
ㆍ Maximum relative humidity of 80%
ㆍ Main supply voltage fluctuation of ±10% of nominal
ㆍ Installation Category (Overvoltage Category) Ⅱ, Pollution Degree 2
