Highlights
Scroll down

• 01 Unique small steam generator

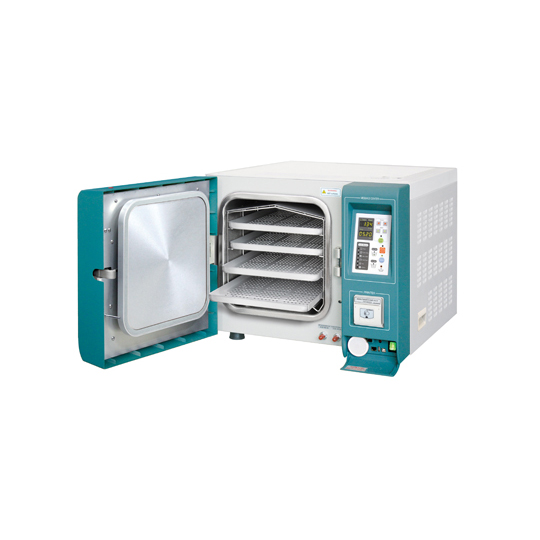

  This sterilizer is equipped with the new type external steam generator which can vaporize water instantly, and the saturated vapor is injected into the chamber as a sterilizing media, therefore the chamber is less contaminated than the internal steam generating type and the usable chamber space is widened because there is no heater assembly in the chamber.

• 02 Use of clean steam every cycle

  The used water after completing a sterilizing cycle is collected in the collecting container designed separately with the reservoir, therefore the saturated steam generated by a clean water always can be supplied to perform every sterilizing cycle.

• 03 Various cycle programs of the optimum condition

  5 kinds of the basic cycle program composed of the optimum sterilization parameters are installed in this sterilizer and the operator can select a proper cycle program among them conveniently for sterilizing, moreover user can change the set values of the basic cycle programs as user's please if necessary for applying to a special sterilization condition or materials.

• 04 Safe and convenient self-diagnosis function

  If an error has occurred during operating the sterilizer, it is detected and the error code is displayed on the LED display accompanying an audible alarm, and the cycle in progress is aborted automatically for safety by the built-in self-diagnosis program.

• 05 Convenient monitoring of a cycle processing

  The operator is able to check a cycle progressing conveniently on the LED display because the state of sterilizer operation is displayed digitally in real time on it.

• 06 Cycle Execution Data Storing

  The cycle performance records executed at least for 11 years are stored in the control unit in order. The user can automatically search the results of sterilization cycle performed previously by input the date performed cycle or the cycle count number and prints out the result record by the built-in panel printer.

• 07 Printing of the cycle performance record

  Panel printer can be equipped to print out the cycle performance record for securing the traceability afterwards.
