Cutting & Sealing Machine for Tyvek Pouch

  • Dental
  • Cutting & Sealing Machine for Tyvek Pouch
  • HCS-400

HCS-400

  • Sealing mode

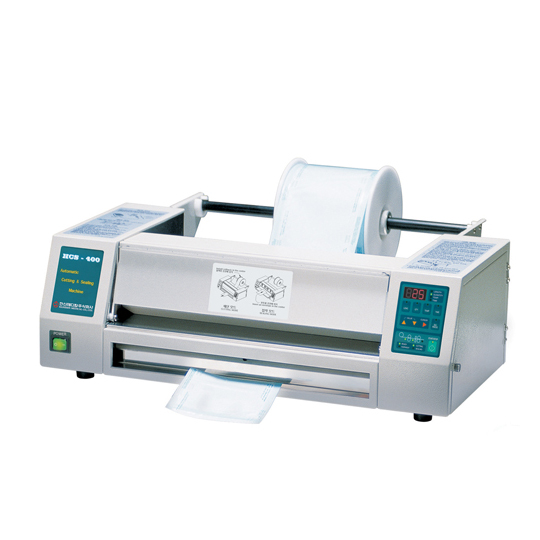

  • Cutting mode
  • Roll stand and Appliance table

  • Sealing mode
  • Cutting mode
  • Roll stand and Appliance table

Highlights
Scroll down

  • 01

    Sterilized items may be contaminated if sterilization bag is damaged during sterilizing or storing, therefore the cutting & sealing machine designed for sterilization bag specially is strongly recommendable to use.
    This machine is appropriate for requiring a limited space due to its advanced dual function.

  • 02

    The entire processing is controlled automatically by the microprocessor, and the operating state is displayed through digital LED.

  • 03

    The automatic cutting and lower end sealing of the roll bags is done according to the preset cutting length, cutting quantity, sealing temperature and sealing time of the bag.

  • 04

    Only inserting the upper end of the bag containing instruments into the sealing inlet enables this machine to seal the bag perfectly.
    The set sealing temperature is maintained correctly by the precise controls.

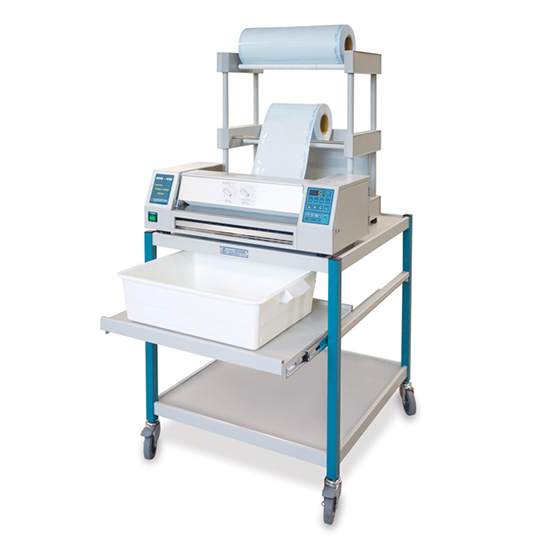

    Roll stand and appliance table with drawers for gathering the sterilizing bags during sealing can be supplied as the optional product.

Specifications

Model HCS-400
Applicable Roll bag Width of Roll: 50~400 mm,
Diameter of Roll: max. Ø250 mm, Internal
Diameter of Roll's Paper Tube : Ø50~75 mm
Productivity About 7 pcs/min (based on 150 mm roll width)
Cutting Length 20cm (12~999cm)
Cutting Quantity 1pc (1pc~999pcs)
Sealing Temperature Range 110℃~230℃
Sealing Time 2sec. (1~3sec.)
Controls Microprocessor
Power AC 220V, 50/60Hz
Heater Capacity 500 W
Dimension Body: W670 × H230 × D325 mm,,
Overall: W682 × H325 × D625 mm
Weight 26 kg
Roll Stand (Optional) Model: RS-3, Overall Size: W530 × D300 × H670 mm
Appliance Table (Optional) Model: AT-650, Overall Size: W690 × D760 × H821 mm
