Home BI Incubator HI-5615
멸균기 │ 고압증기멸균기 시리즈
HI-5615
 SOS CALL system
1 2
*Click image to enlarge the image.

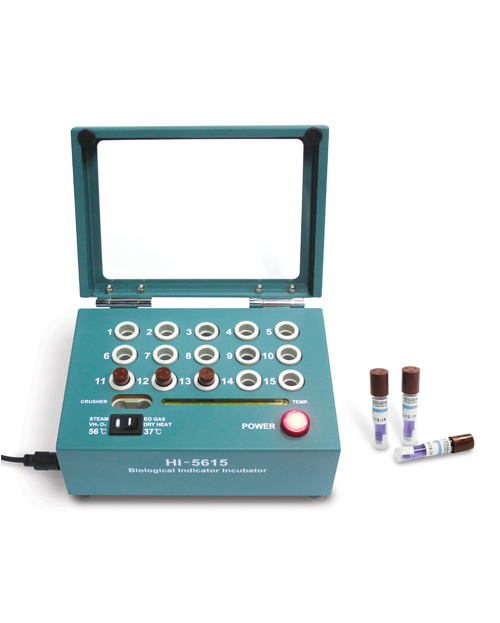

HI-5615 (Self-contained BI Incubator)

Convenient and Effective Incubation of
Self-Contained Biological Indicator

* Built-in thermometer for reading the incubation temperature.
* Temperature selection switch for simple operation.
* 15 incubation cavities and adapters for incubating the SCBIs.
* An integrated activation (crushing) cavity to simplify activation.
* Neat and transparent plastic top cover for preserving a stable and safe incubation environment. sterilizer.
Model HI-5615
Overall Dimension W180 x D125 x H86 ㎜
Operating Range 37.0℃ / 56.0℃
Incubation Cavity Number:  1~15,    Diameter:  15mm    Depth:  35mm
(SCBI Adapter :  Ø 9.5×L35mm)
Power Adapter Input:  AC 100~240V 50/60Hz, 2.0A
Output:  DC 24V 5.0A
Power Consumption 50W
Weight 2.1kg
Environment Conditions * Altitudes up to 2,000 meters.
* Temperature range of +5℃ to +40℃.
* Maximum relative humidity of 80%.
* Main supply voltage fluctuation of ±10% of nominal.
* Installation Category (Overvoltage Category) Ⅱ,   Pollution Degree  2.
