멸균기 │ 고압증기멸균기 시리즈
700 liters
 LPF-700
1 2
*Click image to enlarge the image.

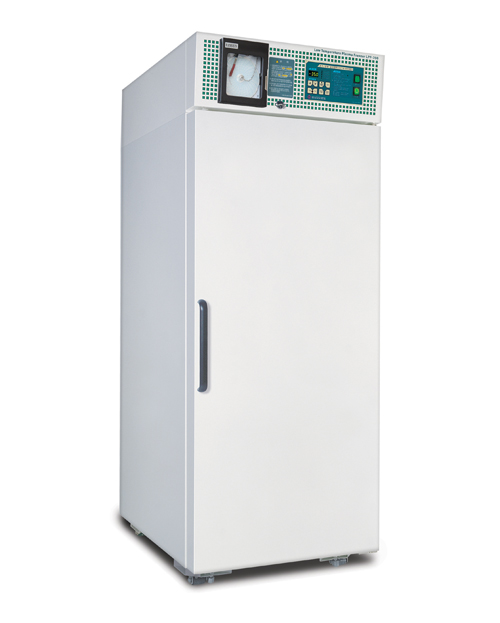

LPF-700  (Low Temperature Plasma Freezer)

-35℃, 700 Liter, Low Temperature Plasma Freezer

1. Freezer for long-term preservation of "Fresh Frozen Plasma"
In response to the increasing need of long-term frozen storage in the medical or biological field, this freezer has been designed to maintain stability with even temperature distribution almost without differences. Particularly the temperature recorder and monitor assure the safety of preservation. This freezer have been approved with its excellence of quality by internationally reputable certificate of CE mark from TÜV NORD.



2. Temperature / Power Monitor
The Temperature/Power Monitor displays the actual temperature of freezing chamber in real time during operating, if the actual temperature deviates from the set operating temperature range or the electric power has been failed, it shows the actual temperature at that time, high (HI) or low (LO) and power failure (AC) indication respectively on the digital LED display accompanying an audible warning.



3. Temperature Recorder
The Temperature Recorder draws the inner temperature in graphs on the recording diagram for 7 days and the temperature records must be kept for reference.
Model LPF-700
Exterior W766 x D966 x H1,945mm
Material; Galvanized steel plate, Powder coating
Interior (Chamber) W620 x D780 x H1,448mm,   Vol: 700ℓ
Insulation Non-CFC Polyurethane foam or foam panel,  thickness:  70 mm
Drawers W551 x D598 x H97 mm,
Q'ty:  7ea,   Material: Stainless steel plate,  Partition; optional
Compressing Unit 1 HP hermetically sealed compressor x 1, Air-cooling type
Cooling Unit Finned tube coil type evaporator with blower,
Automatic periodical defrosting system
Refrigerant R-404a,   Charge;  1.0 kg
Operating Temperature -20.0℃ ~ -35.0℃
Power Source AC 230V, 50/60Hz,
Power Consumption 1,000 W
Chamber Lighting 32W fluorescent lamp,   Q'ty:  1ea.
Temp./Power Monitor Model;  HTM-6974D
Temperature Recorder Recording range:  -90℃~+10℃,   7-day Revolution,
 Ø125mm Diagram,   1.5V(LR6) battery driven,   Fiber tip pen use.
Emergency Call System (optional) SOS Call System
Net Weight 245 kg
Environment Conditions *Altitudes up to 2,000 meters.
*Temperature range of +15℃ to +30℃.
*Relative humidity of 60~70% RH.
*Main supply voltage fluctuation of ±10% of nominal.
*Installation Category (Overvoltage Category)Ⅱ,   Pollution Degree  2.
*Climatic Class: 7 (ISO 23953-2).
