Cast Cutter
 SOS CALL system
1 2 3
*Click image to enlarge the image.

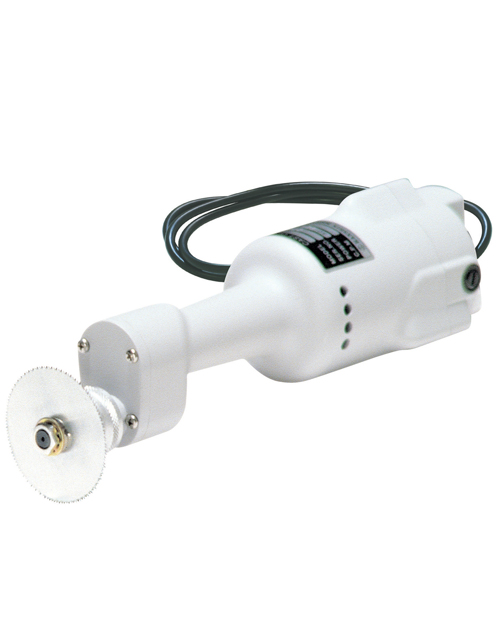

HCC-114

This cast cutter is an essential appliance for orthopedics, this can cut efficiently any type of casting tape smoothly because it has an excellent function of cutting and convenience to use, moreover very firm and durable.
Cast cutting is progressing by vibrating of the saw blade at high speed, therefore the more saw teeth contacted on the surface of plaster cast the better cutting performance.
According to this principle, place the saw blade at a right angle to the plaster cast and press slowly until a cast is pierced, cutting depth shall be controlled in thumb at this time.
When a part cutting is completed, lift the saw blade up slightly and advance it about 13mm within the groove already has been cut on the cast to the next part to cut. Continue to repeat this process in direction of the set cutting line on the cast until the cast cutting is completed.
The optional dust collection hood and hose, which is fitted to the cast cutter and vacuum cleaner, will protect operator's health and keep clean the surrounding environment from the dust particles blown away during cutting the plaster cast.
MODEL HCC-114
Oscillating Frequency 11,400 cpm
Rotation Angle
Dimension Ø80 × L295 mm
Power Source AC  220V, 50/60Hz,  80W
Net Weight 1.5 Kg
Saw Blade Ø51.0mm,   Ø63.5mm
Dust Suction System (optional item) Hood :  1 ea,  Hose :  1 ea
