멸균기 │ 고압증기멸균기 시리즈
1000 liters
 HS-1000   HS-1000T (Touch Screen type)
1 2 3 4 5 6 7
*Click image to enlarge the image.

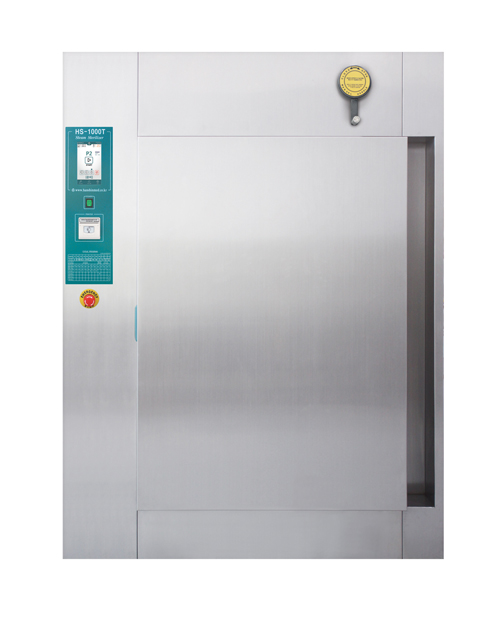

HS-1000T (Touch Screen type)

1. Heavy-Duty Structure & Convenient Functions
This large sterilizer uses the saturated vapor under high pressure as sterilizing agent supplied from the external steam generator to sterilize a large number of medical instruments or bulky packages at a time, and has the excellent vacuum performance, durability and low noise by powerful vacuum system which is comprised of the water ejector, water pump and heat exchanger. The control system should be managed quickly to prevent a trouble for medical affairs in case of occurring failure, therefore it is designed to be a compact component type that is capable of separating and assembling, thus the operator can separate the failed from the sterilizer and change it with a prepared normal one easily.


2. One-touch Sterilizer Operation on the Touch Screen and Ubiquitous Function
The sterilizer can be operated conveniently by touching the flat buttons on the user interfaced touch screen and the cycle processing is monitored in real time for handling a problem immediately during operating sterilizer.
At least 11 years of cycle execution records are automatically stored on the SD(secure digital) memory card of the control unit. The user can search and check the results of a cycle performed in the past by input the date performed or cycle count number on the touch screen, and print out the record by the built-in panel printer for using as an evidence data of sterilization quality.
Especially the communication program for multi user which supports the ubiquitous function is provided as an optional specification, and all the process informations occurred during operating of the sterilizers being networked are displayed on the client monitors in real time and stored in the memory unit for the history search by the network composed of LAN, DB Server, Client.  (optional specification)


3. Variable Sterilization Cycle Programs and Self-Diagnosis Function
9 kinds of basic cycle program and 3 kinds of test program are embedded in the sterilizer, moreover user can set 81 kinds of program at user's please and it means that operators can sterilize the variable loads at the optimum condition in any circumstances. If an error has occurred during operating the sterilizer, the error code is displayed on the touch screen accompanying an audible alarm and the cycle in progress is aborted at the same time automatically for the safety of workplace by the self-diagnosis program.


4. Improved Chamber Door and Sealing System
The improved chamber door can seal all the chamber edges evenly without heavy radial type steel lever, thus the large capacity sterilization is more convenient because it allows the operation process of door to simple and the door weight to reduce.


5. Preventive Safety Equipments
The door would not be opened without power supplying and cycle does not start unless the door is locked. In case the double door type, the doors are not opened at the both sides of front and rear simultaneously, operator could open either door on the condition of locking the other door. The door locking system is designed to seal the chamber simply by the radial levers. To open the door safely under chamber pressure, turn the door handle counter clockwise, then the radial levers are released and the vapor is leaked through the gap between chamber edge and door. Strong opening/closing mechanism and heat-blocking door plate cover would protect the operator from a possible accident during sterilizing. In case the chamber pressure exceeds in the set value, the safety valve exhausts the vapor from the chamber and then decreases the chamber pressure.


6. Printing Out the Cycle Performance Record
The built-in panel printer prints out the cycle performance record for securing the traceability afterwards.
MODEL HS-1000T
STYLE Single Door Double Door
OVERALL SIZE W1,385 x D1,597 x H1,894 ㎜ W1,385 x D1,717 x H1,894 ㎜
CHAMBER W680 x D1,286 x H1,200 ㎜
Vol.: 1,049ℓ, Material: STS 316L
W680 x D1,316 x H1,200 ㎜
Vol.: 1,073ℓ, Material: STS 316L
DOOR OPERATION Automatic(Power) Operation
LOADING SYSTEM Loading Car; W600 x D1,200 x H1,072 ㎜
Transfer Carriage; W560 x D1,490 x H365 ㎜
OPERATING TEMPERATURE 121.0 ℃ ~ 135.0 ℃
AIR REMOVAL Gravity / Vacuum
CONTROL Microprocessor
DISPLAY Touch Screen type Color LCD
PRINTER Direct Thermal Printing Type , Printing Paper Roll: W58x∅40㎜ (length; 13m)
POWER SOURCE AC 220V, 1ph, 50/60Hz, 15A
STEAM SOURCE Saturated Steam (Dry Rate: more than 97%), Pressure: 3.50~5.00 bar
Flow Rate: max. 200 kg/hr, Consumption: Avg. 70 kg/hr
Connection Pipe on Unit Side: 3/4″ FNPT
WATER SOURCE Soft Water less than 15℃, Pressure: 2.10~5.00bar
Flow Rate: max. 60ℓ/min, Consumption: Avg. 2,000ℓ/hr
Connection Pipe on Unit Side: 1″ FNPT
VACUUM SYSTEM Water Ejector & Water Pump(1,400W)
DRAINAGE Connection Pipe on Unit Side: 1-1/4″ FNPT
Exclusive Drainage: 2″ MPT (Metallic Pipe)
NET WEIGHT
Unit :   1,474kg
Loading Car : 71 kg
Carriage : 55 kg
Unit : 2,030 kg
Loading Car : 71 kg
Carriage : 55 kg ×2
ENVIRONMENT CONDITIONS
(IEC61010-1)
ㆍAltitudes up to 2,000 meters.
ㆍTemperature range of +5℃ to +40℃.
ㆍMaximum relative humidity of 80% temperature up to 31℃ decreasing linearly to 50% relative humidity at 40℃
ㆍMain supply voltage fluctuation of ±10% of nominal.
ㆍInstallation Category (Overvoltage Category) Ⅱ, Pollution Degree 2.
